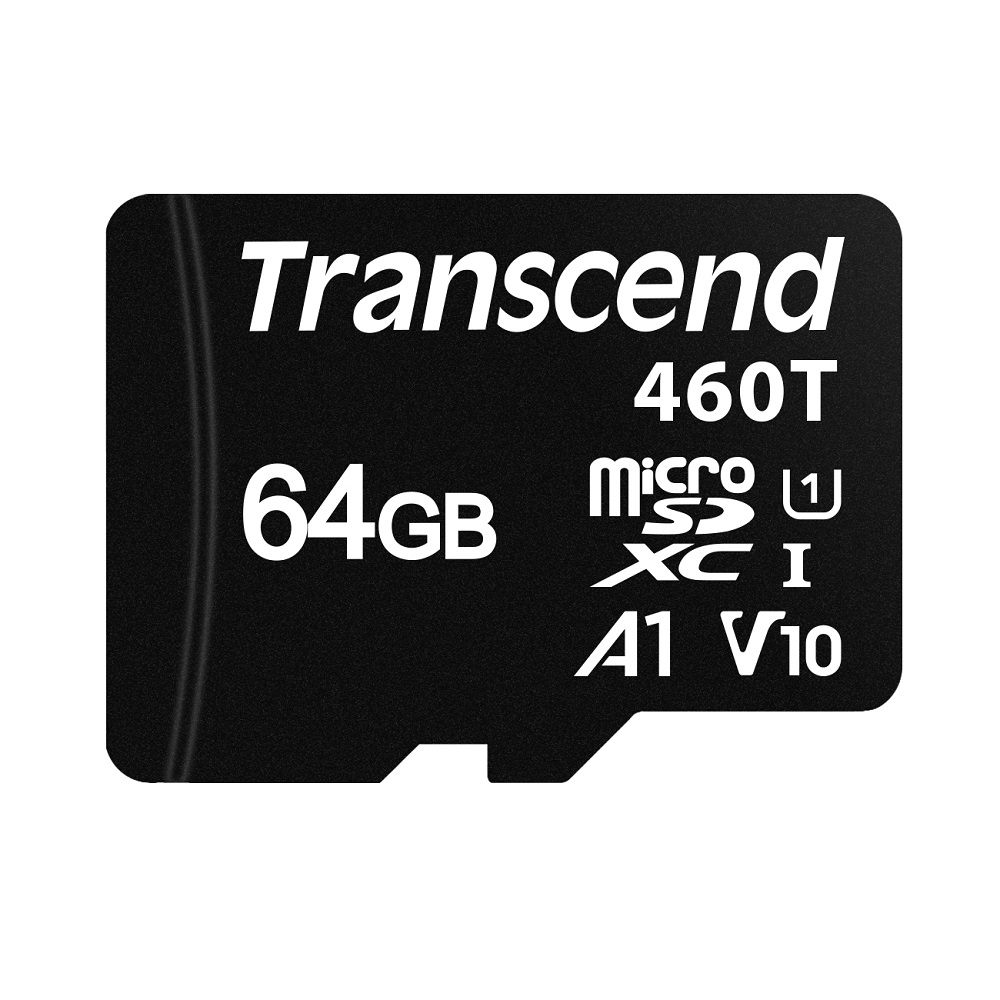

Utilizing top-quality 3D NAND Flash and rated to endure 3K P/E cycles, Transcends microSDXC 460T memory cards combine the advantages of high performance and exceptional endurance at an affordable price. They are ideal for write-intensive applications such as medical devices, surveillance systems, and POS terminals.
Transcend also offers the microSDXC 460I with wide temperature (-40℃ ~ 85℃) capabilities to ensure sustained functionality and optimal reliability.
Firmware Features
Built-in LDPC ECC (Error Correction Code) functionality
Early Move
Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
Wear-Leveling
Hardware Features
Compliant with RoHS 2.0 standards
Electrostatic protection (ESD IEC 61000-4-2)
Compliant with SD specification 6.1
Compliant with UHS-I
Compliant with Video Speed Class 30 (V30)
Compliant with Application Performance Class 2 (A2)
Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
Promised operational reliability in a wide temperature range (from -40°C to 85°C)
Supports Transcend Scope Pro software
*Scope Pro is only available when used with the RDF5 card reader.
*Transcends microSDXC 460T - 460I 64GB cards meet UHS-I Speed Class 1 (U1), Video Speed Class 10 (V10), and Application Performance Class 1 (A1) standards.
Appearance
Dimensions 11 mm x 15 mm x 1 mm (0.43- x 0.59- x 0.04-)
Form Factor microSD flash card
Storage
Flash Type 112-layer 3D NAND flash
Capacity 64 GB/128 GB/256 GB/512 GB
Operating Environment
Operating Voltage 2.7V ~ 3.6V
Drop Test 1.5m free fall
Operating Temperature Standard Temp.-25°C ~ 85°C Wide Temp.-40°C~ 85°C
Storage Temperature -40°C ~ 85°C
Humidity 0% ~ 95%
Shock Acceleration: 490 m/s² (standard holding time: 11 ms, semi-sine wave, velocity change: 3.44 m/s)
Vibration (Operating) 20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency)
Power
Power Consumption (Max.) 0.5 watt(s)
Performance
Read Speed (Max.) up to 100 MB/s
Write Speed (Max.) up to 80 MB/s
Terabytes Written (TBW) up to 1343 TBW
Note
Speed may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.
Warranty
Certificate CE/UKCA/FCC
Warranty Three-year Limited Warranty
Warranty Policy Please click here for more information about the Transcend Warranty Policy.
Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification.
