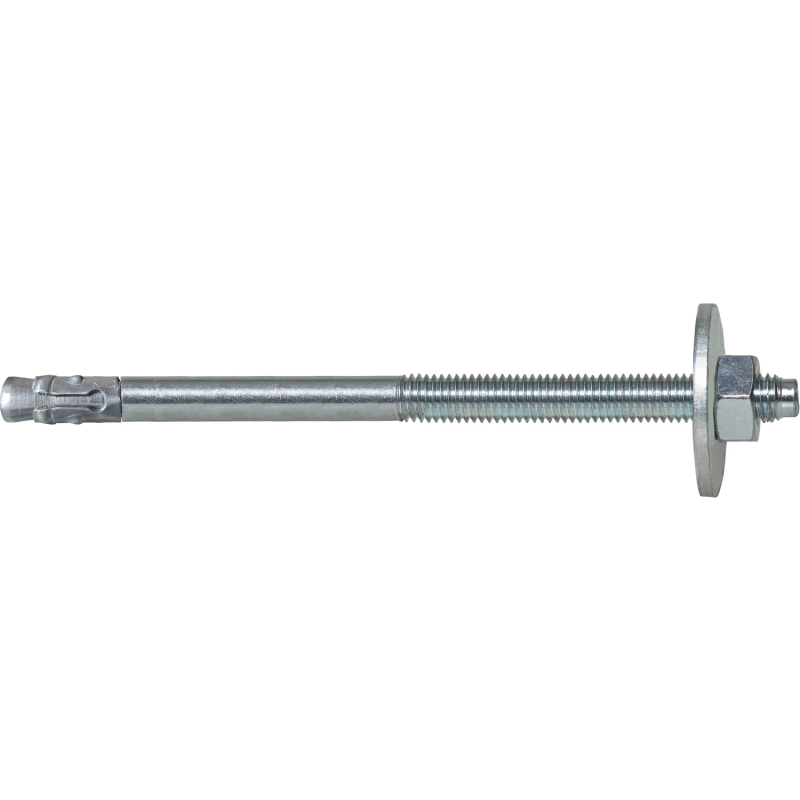

The quick-fix anchor BAZ-H 16x323/203 with large washer according to ISO 7094 (DIN 440) is your high performance anchor for heavy-duty applications in woodworking.

The quick-fix anchor BAZ-H is ETA-approved with Option 1 for a wide variety of applications in cracked concrete.

Due to its long thread, the BAZ quick-fix anchor ensures greater flexibility in application, especially for distance installations.

Thanks to its elaborate expansion clip geometry, it quickly and safely anchors itself to the base material and achieves high load values even with small edge and axial distances. The perfect adjustment between the cone and the expansion sleeve ensures reliable expansion behaviour and high load values.

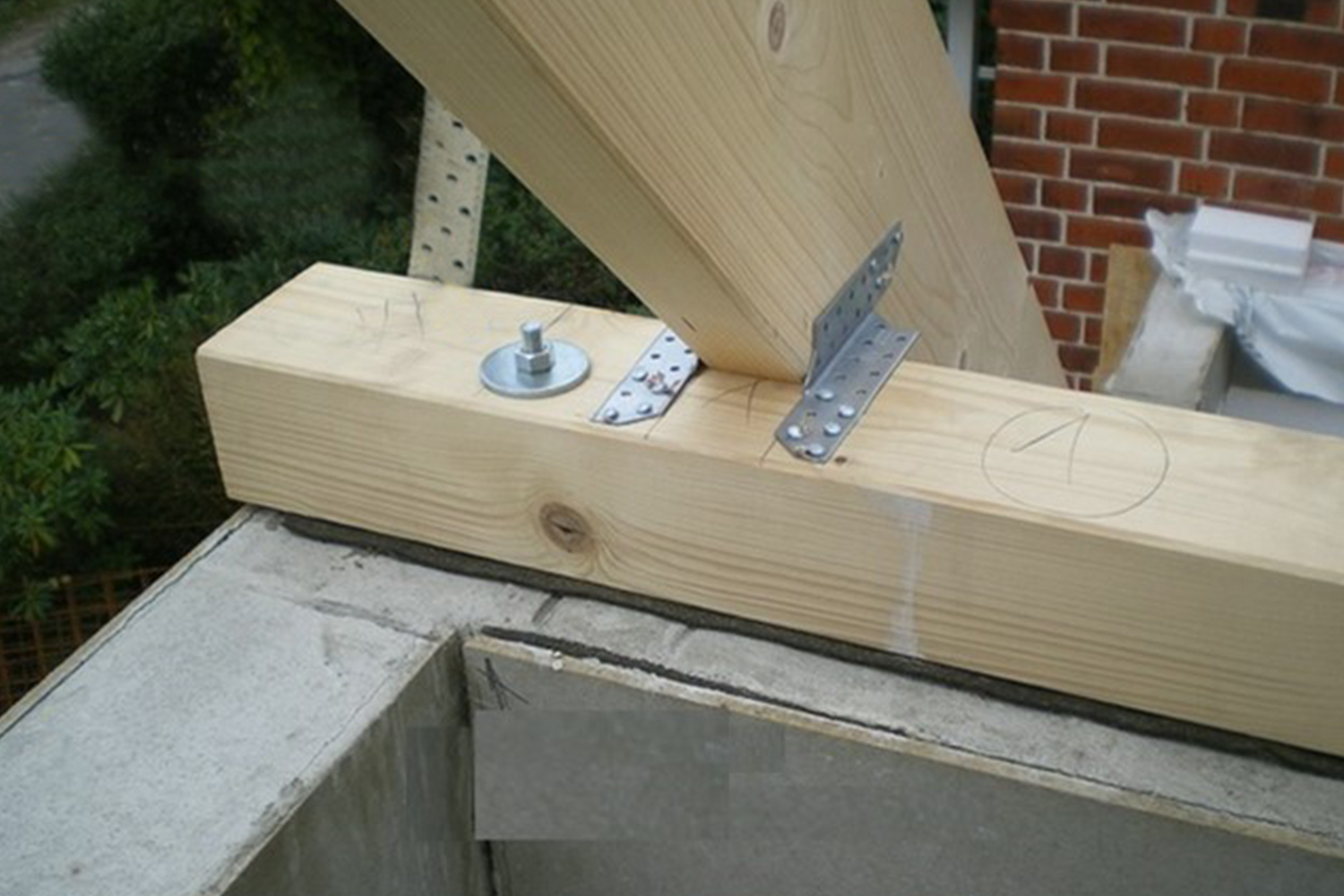

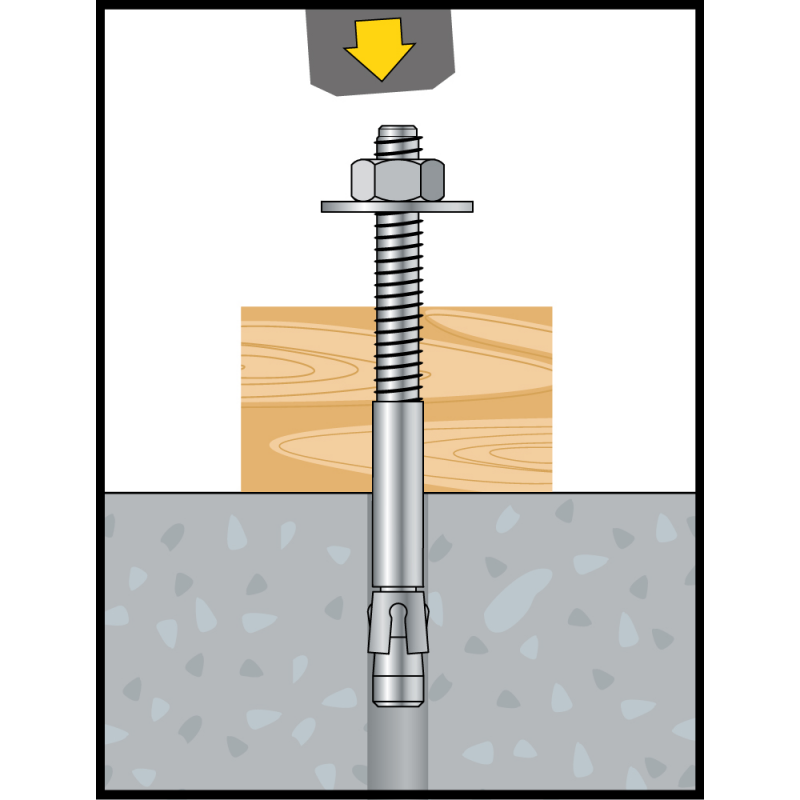

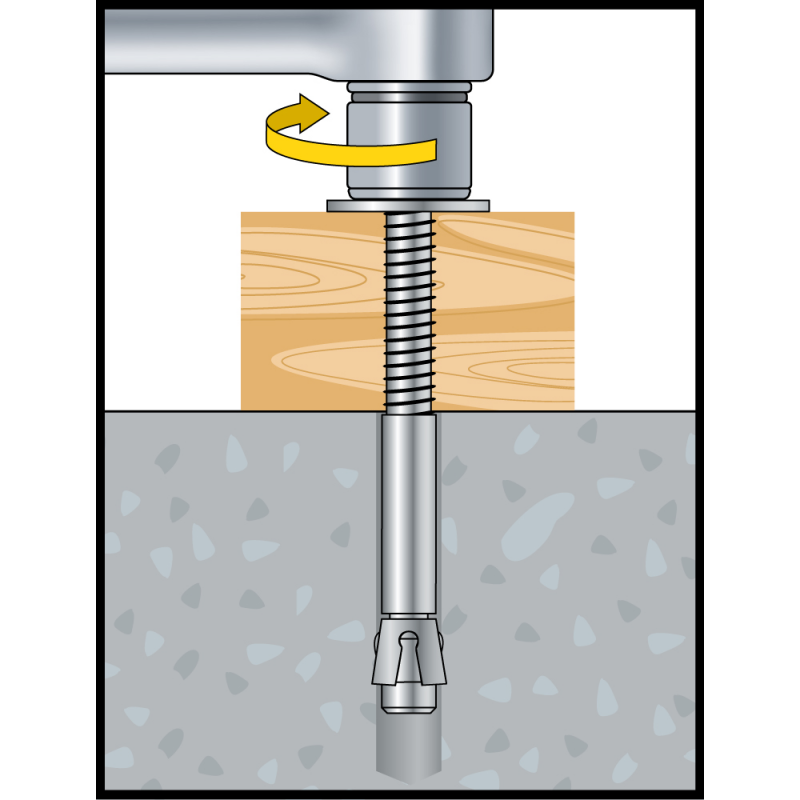

For push-through installation through wood, the rounding of the expansion cone simplifies the setting of the anchor.

With the BAZ-H 16x323/203 you can install fixtures with a thickness of up to 203 mm.
