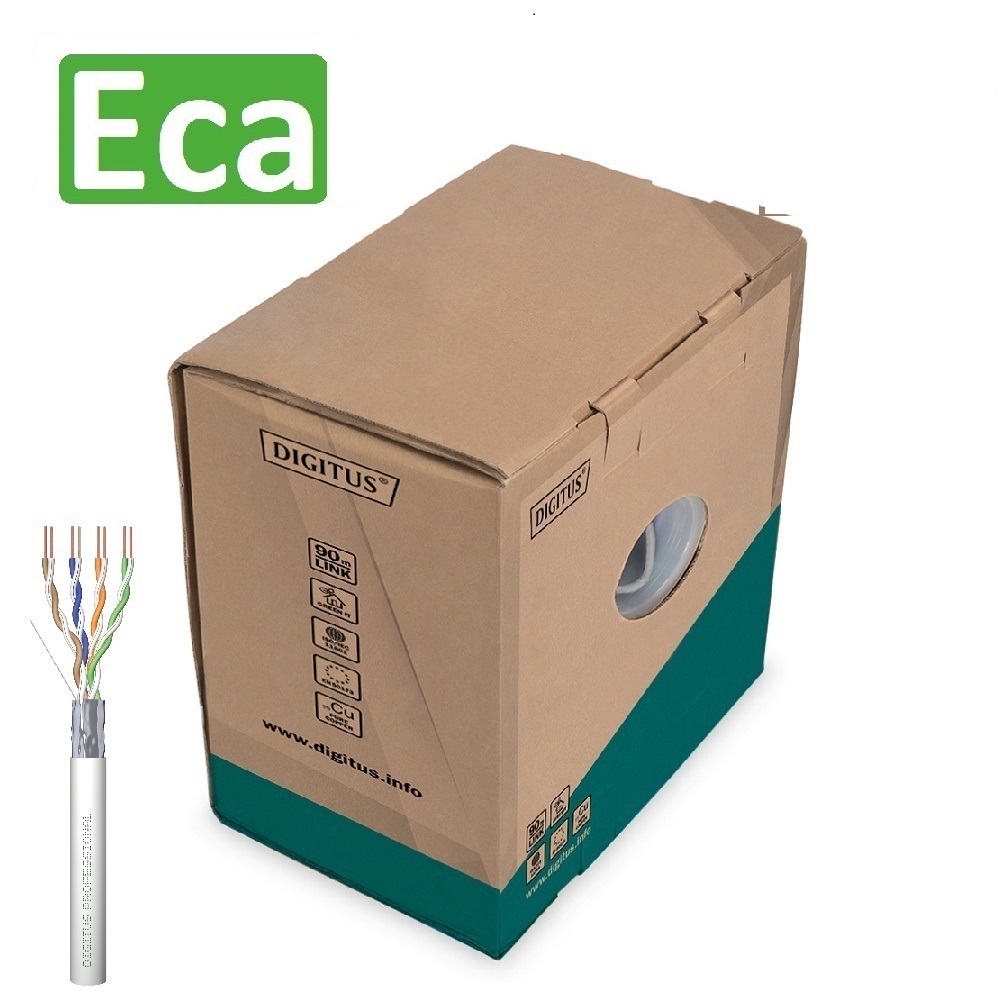

ASSNET250 CAT 6 U-UTP installation cable, 250 MHz Eca (PVC), AWG 23/1, 305 m paper box, sx, grey

The ASSNET installation cables assure best performance and link quality for your network

1GBit Ethernet
250 MHz transmission frequency
CPR class Eca

DESCRIPTION
The ASSNET250 Cat.6 U/UTP installation cable is characterized by the following cable construction 4x2x AWG23/1 CCA wires and reaches a transmission frequency up to 250 MHz. The PVC jacket is conform to the CPR Euro class Eca. The cable is suitable for building structured cabling in the secondary and tertiary area.

TECHNICAL DETAILS

Physical properties:
Conductor: Copper covered aluminum, solid AWG 23/1
Insulation: HD-PE (High Density Polyethylene)
Total number of insulated conductors: 8, twisted in 4 pairs
Color code: Blue-white, orange-white, green-white, brown-white
Individual pair shield: None
Overall shielding: None
Outer sheat: Eca acc. to EN 50575; PVC
Outer sheath diameter (nominal): 0,55 mm nominal
Outer sheath color: Grey (RAL 7035)

Mechanical properties:
Tensile loading: 150N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Shipping- and storage temperature range: -20 °C up to +75 °C
Operating temperature range: -20 °C up to +60 °C
Installation temperature range: 0 °C up to +50 °C

Electrical properties:
Impedance: 100±15 Ohm @ 1-100 MHz
Capacitance: 40 pF/m nominal @ 800 Hz
Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz
Insulation resistance: 2 GOhm x km min.
DC loop resistance: 262 Ohm/km max. (2% max. resistance unbalance)
Voltage resistance: 72 Vdc max.
Coupling attenuation: CA-Type 3
Signal propagation delay: 535 nS/100 m max.
Propagation delay: 20 nS/100 m max.
Separating class: ,,b- acc. to EN 50174-2
NVP: 69%
Assortment: Twisted Pair Installation Cables
Category: CAT 6
Shielding: U-UTP, unshielded
CPR: Eca
Length: 305 m
Color: grey
Jacket: PVC
Structure: 4 x 2 AWG 23/1, solid twisted pair
