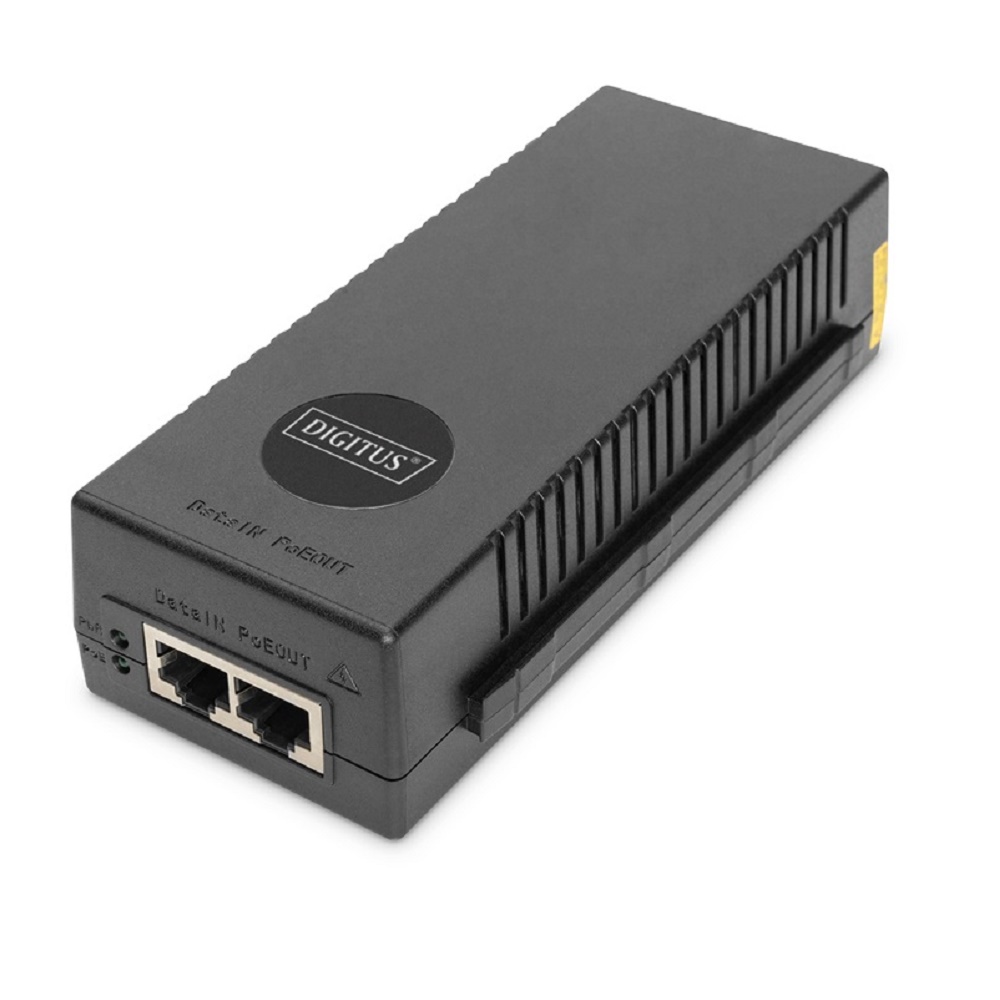

DIGITUS 10 Gigabit Ethernet PoE+ Injector, 802.3at, 30 W
Product number: DN-95108
EAN: 4016032464501
10 Gigabit Ethernet PoE+ Injector, 802.3at Power Pins:3/6(+), 1/2(-), 30W

Power supply and data transfer with up to 10G bandwidth and 30 watt output with just one network cable, for PoE-enabled devices such as access points, IP phones or IP cameras

PoE power supply with up to 30 W and 10 Gbps
Supports the IEEE 802.3af/at PoE standard
Supports 10G, 5G, 2.5G, 10/100/1000 Base-T
PoE output: 30 W
For distances of up to 100 m
LED operating display
Integrated power connection for non-heating appliances (C14)
Excess voltage and short circuit protection
Automatic detection of PoE devices
Suitable for wall installation

DESCRIPTION
The PoE+ injector from DIGITUS® offers a 30 watt PoE port as a midspan solution. Compact, cost-effective and fully IEEE802.3at-compliant. With support for 10 Gbps network connections, the PoE injector can also be used in environments where the highest possible data transfer speed is essential. The simple solution for remote power supply of wireless access points, IP security camera, VoIP phones and other installations with PoE functionality. The injector makes an external power supply for your devices unnecessary, eliminating the connected power cables / plugs. PoE - PoE+ compatible devices can be supplied with power and data using the network cable, a secure and reliable solution for expanding the existing network infrastructure.

TECHNICAL DETAILS
Supports 10G, 5G, 2.5G and 10/100/1000 Base-T applications
Supports standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at

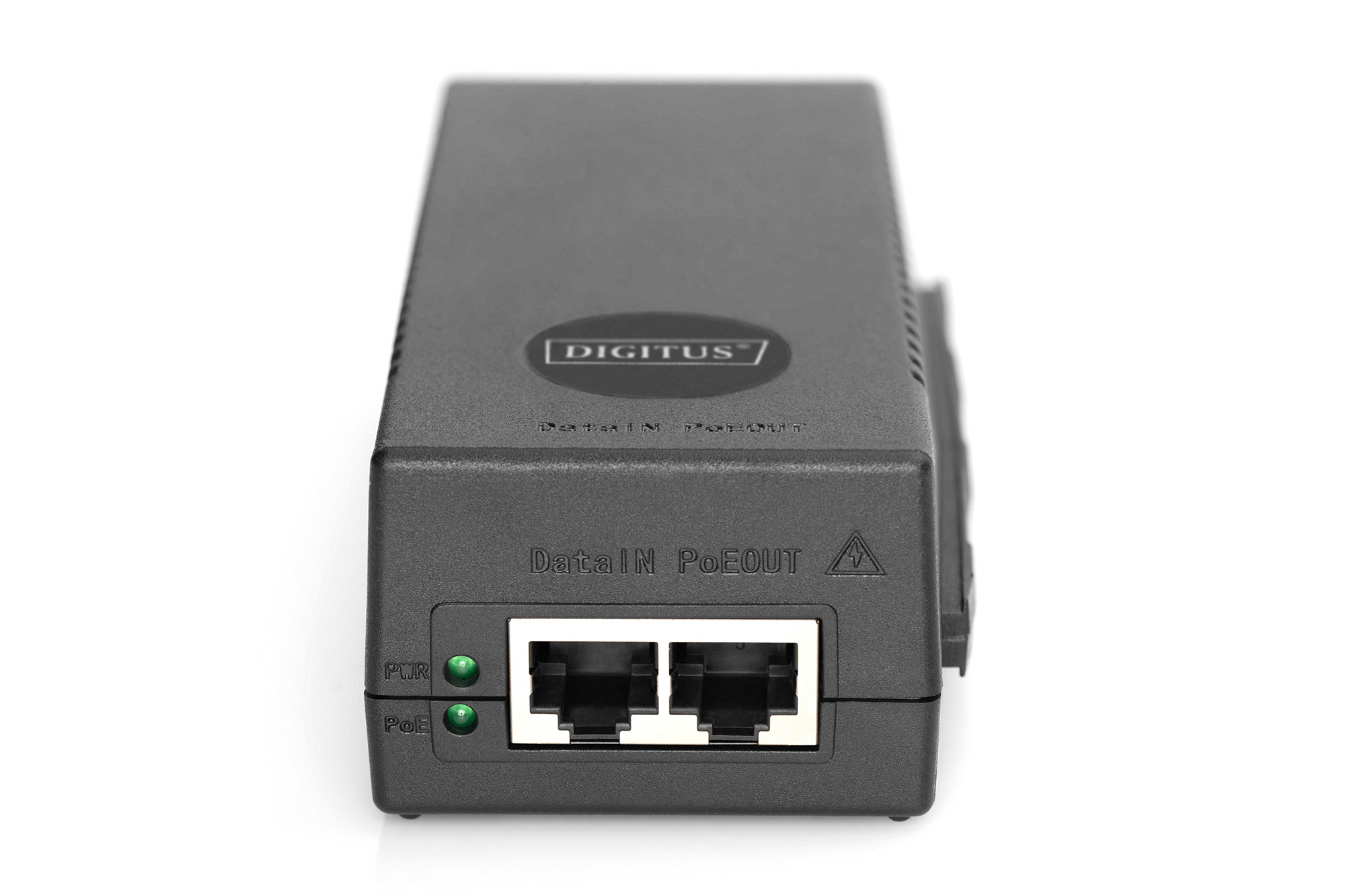

LED display: Power input / PoE output
PoE output: 30 W
For distances of up to 100 m
LED operating display

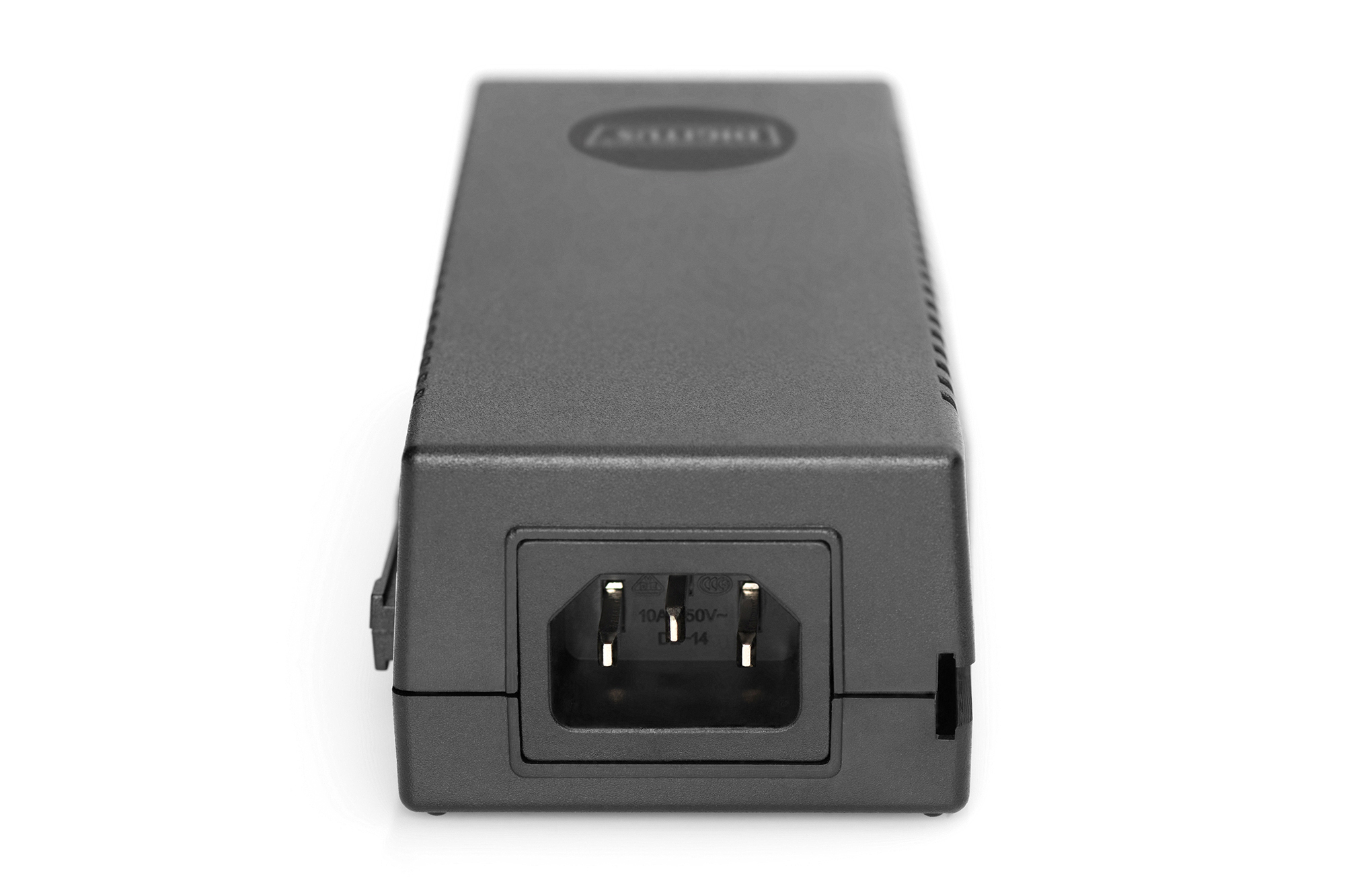

Integrated power connection for non-heating appliances (C14)
Excess voltage and short circuit protection
Automatic detection of PoE devices
Suitable for wall installation
Power supply: 100 - 240 VAC / 50/60 Hz
Total power consumption: 32 W max.
PoE voltage: 52 VDC / 0.58 A
PoE budget: 30 W
PIN assignment: V+ (RJ45 Pin 3, 6), V- (RJ45 Pin 1, 2)
Operating temperature: 0 to 40°C
Storage temperature: -10 °C to 70 °C
Operating humidity: 5 - 95% (non condensing)
Dimensions: 145.5 x 61.5 x 40 mm (L x W x H)
Weight: 0.45 kg
Number of ports: 1
PoE Power budget: 30 W
PoE standard: IEEE802.3at (PoE+)
Ethernet speed: 10 gigabit
Industrial usage: no
PACKAGE CONTENT

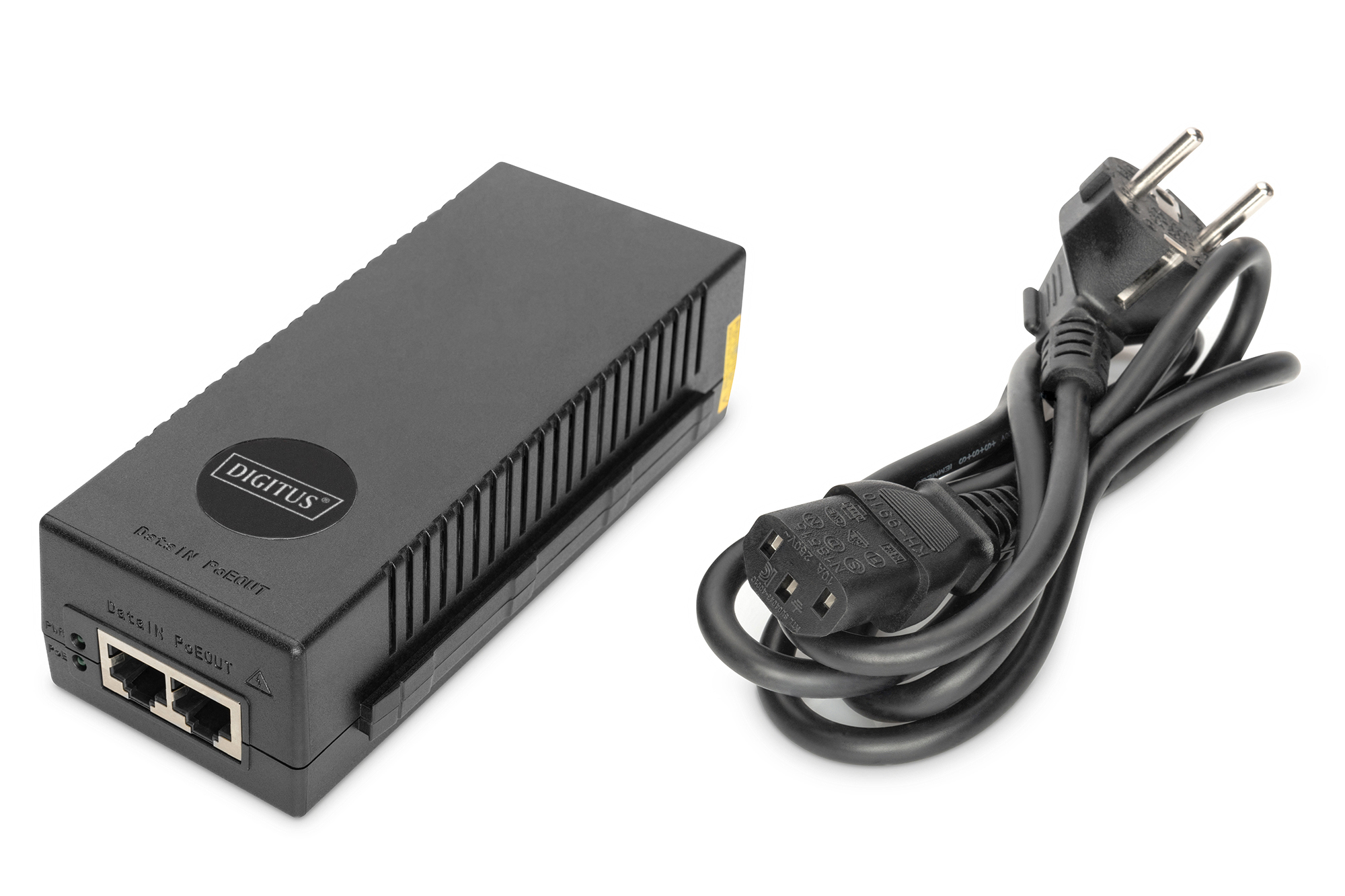

10 Gigabit Ethernet PoE+ Injector, 802.3at, 30 W
Cable for non-heating appliances (safety plug / jack IEC 13)
Quick reference guide
