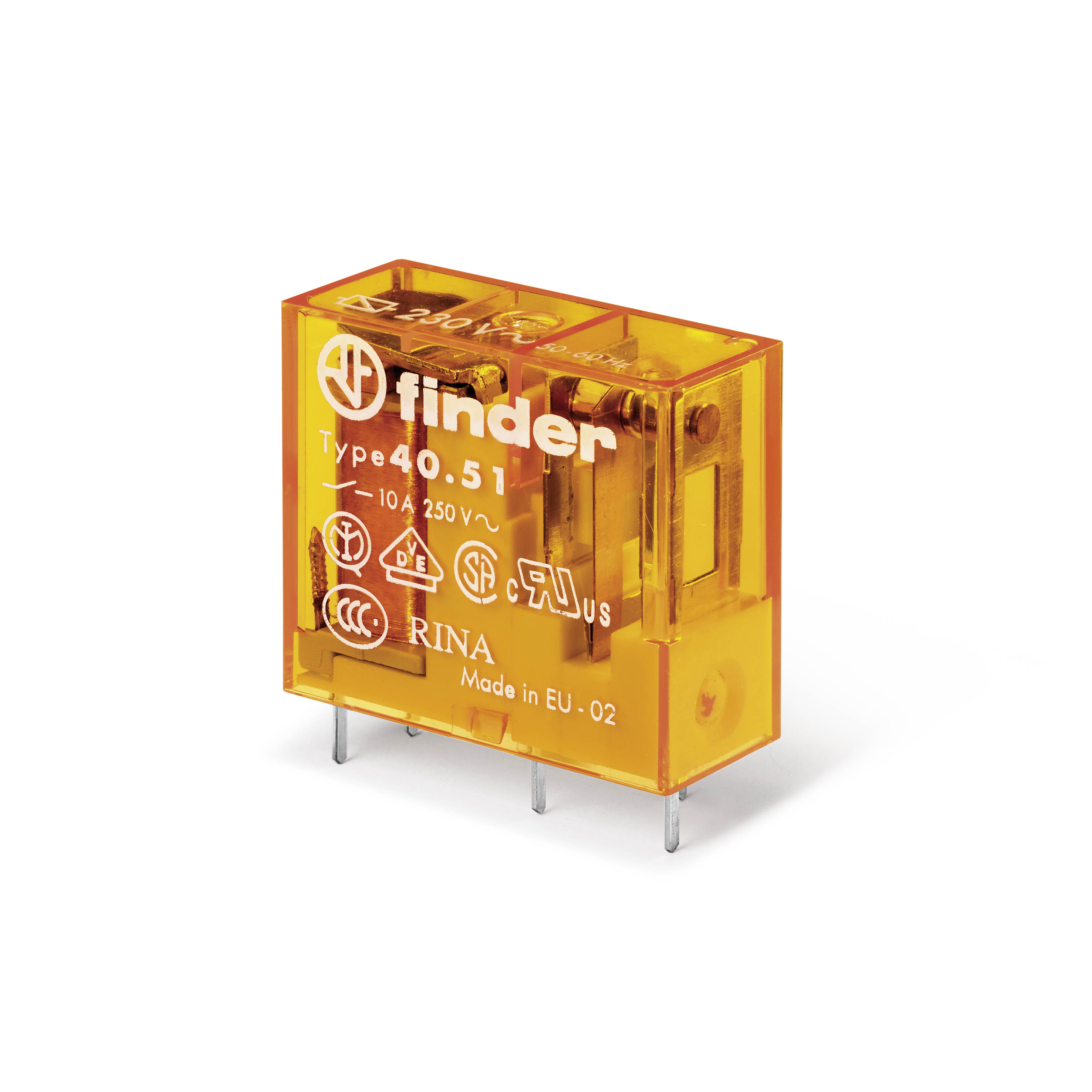

Type 40.51 miniature relay 1 CO 10 A, 5.0 mm pin pitch for printed circuit boards, and plug-in with the 95 Series sockets.

Features include:

Pin length 3.5 mm for PCB mounting
Pin length 5.3 mm for plug-in relays
DC coil (650 mW or 500 mW)
Variant with cadmium-free contacts
8 mm, 6 kV (1.2/50µs) insulation between coil and contacts
Compliance with the Glow wire test according to EN 60335-1
For use with 95 Series sockets with push-in, screw or spring terminals for mounting on 35 mm rail (EN 60715) or PCB
For use with 99 Series coil indication and EMC suppression modules and Type 86.30 timer modules
Protection category:
• RT II – flux proof (Standard)
• RT III – washable (Special version)
