Converter MINI 10/100 / 1000Mbps - MM Duplex SC 850nm 550m

< BACK

NETWORKING EQUIPMENT. CONVERTERS. MONITORING > SFP / OPTICAL CONVERTERS / GIBIC > MM - MULTIMODE > MM - 1000 Mbps

Converter MINI 10/100 / 1000Mbps - MM Duplex SC 850nm 550m

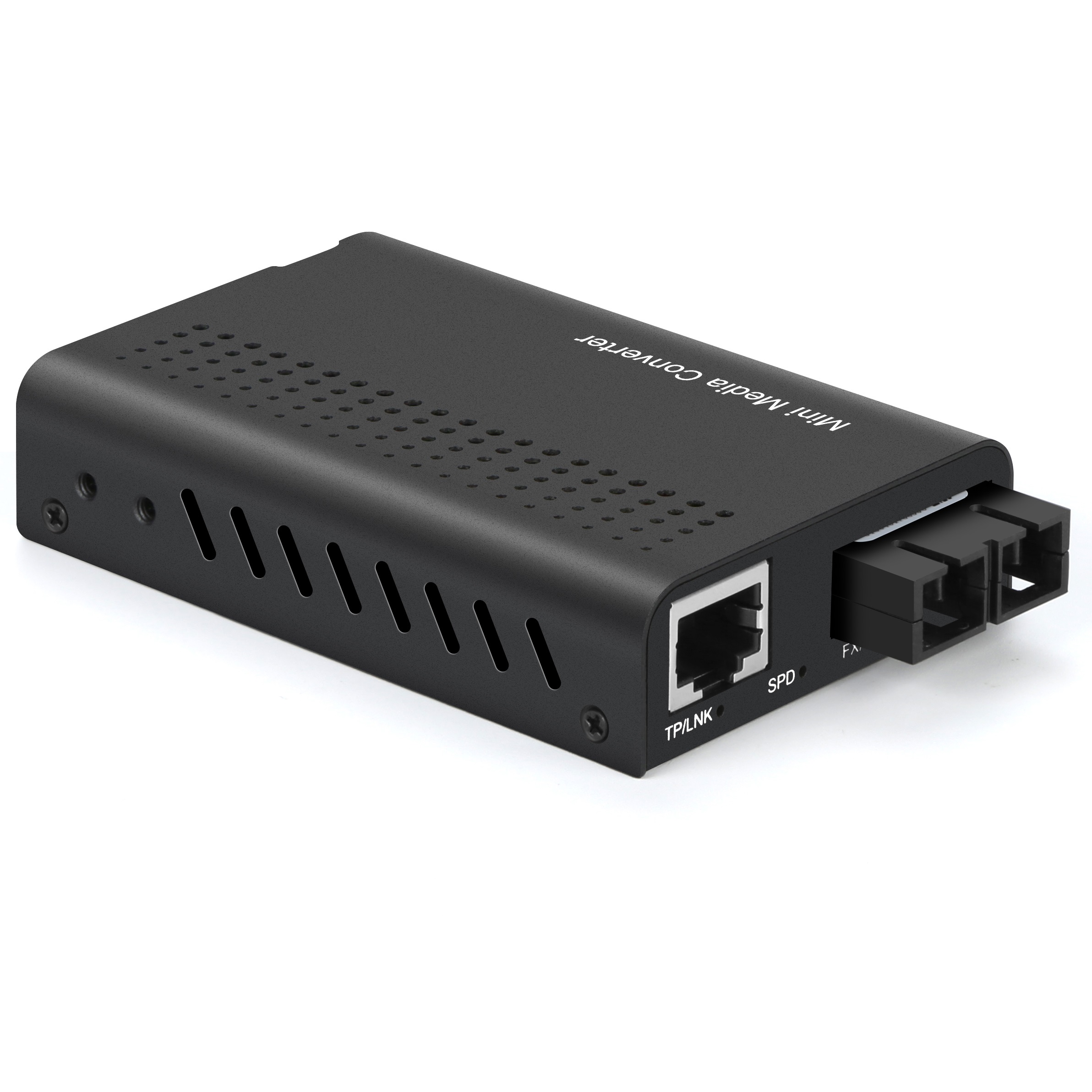

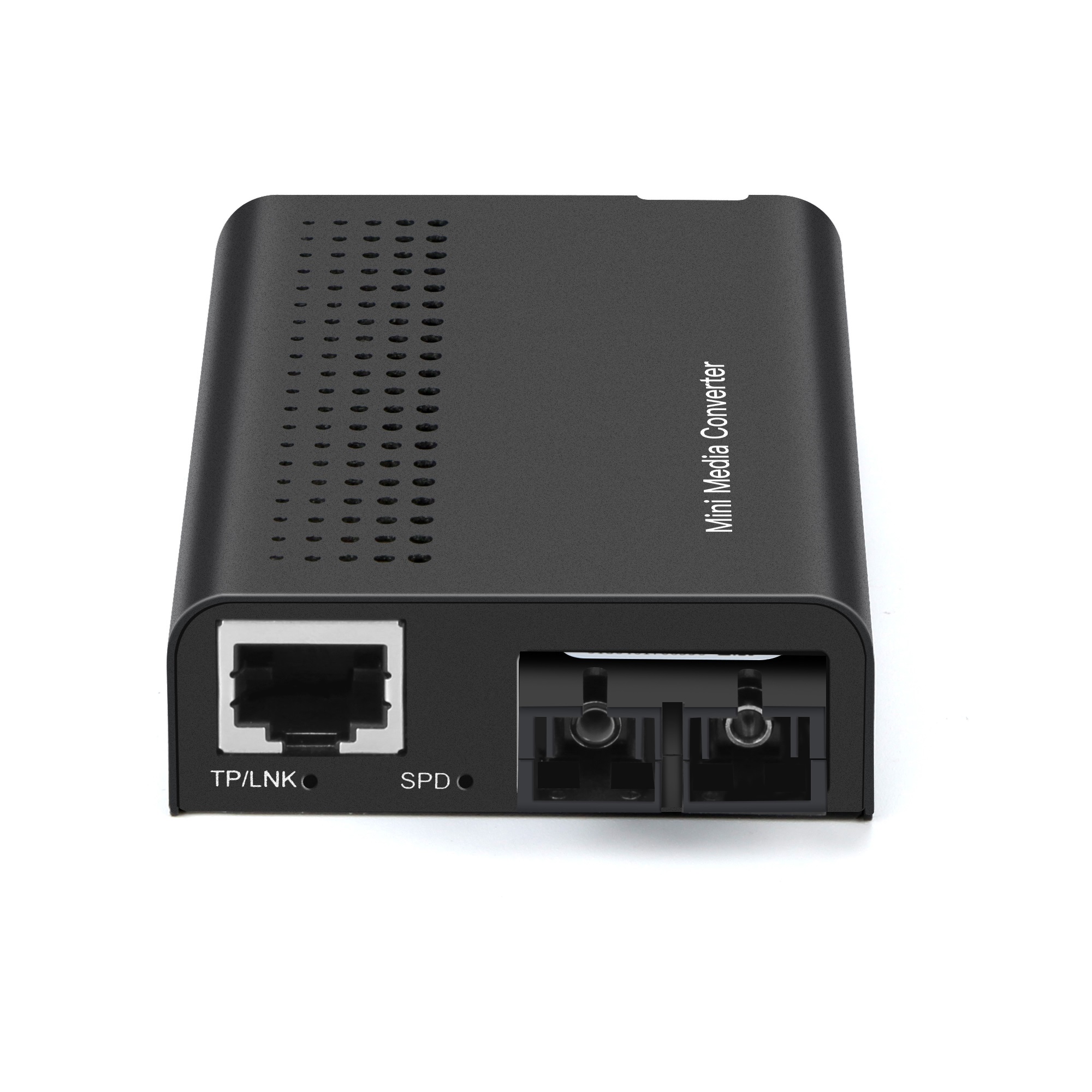

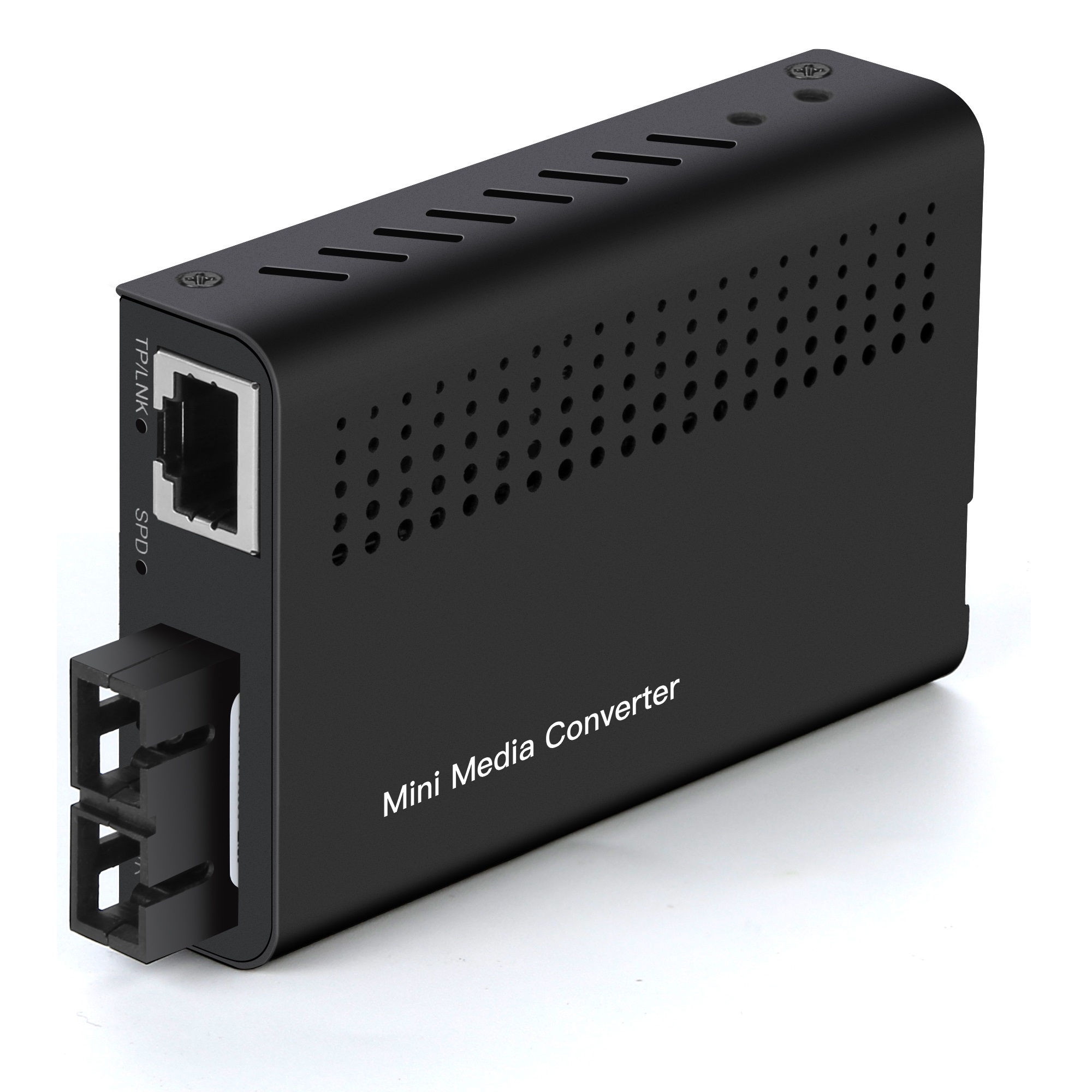

Product appearance may be different from picture

PRICE

€ 37.942 / Pcs.

€ 3.162 / pack

€ 35.46 / Pcs.

€ 2.955 / pack

inc. VAT

excl. VAT

The price is for informational purposes. Exact prices are available upon request for specific quantities and projects with other product

Article:	FR-2203-GM8S05
Manufacturer:	FIBERROAD TECHNOGY

Specifications, Certificates and declarations

Only for registered users

Description

10/100/1000Base-TX to 1000Base-FX ﬁber media converter;
Unit and Port LEDs allow for quick status information;
Support Auto-Negotiation, Auto MDI/MDI-X and Half/Full Duplex mode;
Support Jumbo Frame;
Automatic Link Restoration;
Connect to legacy network equipment;
Eliminate Collision Domains;
Support 1U Rack (12 channel) and Standalone use;
Comply with IEEE 802.3/802.3u/802.3ab/802.3z Ethernet standards;
Prevent packet loss with back pressure and IEEE 802.3x pause frame flow control;
SC/FC/ST/LC Connectors optional;
DIP Switch to set different conﬁgurations;
Compact package size, easy installation;
Support Link Fault Pass Through (LFP) and Automatic Laser Shutdown (ALS) function;

DIP Switches
LFP function:Disable/Enable
Fowrward mode:Store and forward/Cut through
Fiber Speed:FX 100M/1000M
