RAC-KL-ETE-X3 *
* Designed for mounting into cabinets 800 mm wide
Coolant type: R134a
Cooling capacity (W) (L35/L35) 2700
External dimensions (H x W x D) 450 x 800 x 465
Temperature range set up electrical thermostat
Power supply (V/Hz) 230/50-60
Air flow (m3/h) 860
Electric input (W) (L35/L50) 1580
Noise level (dB) 77
Weight (kg) 74,5

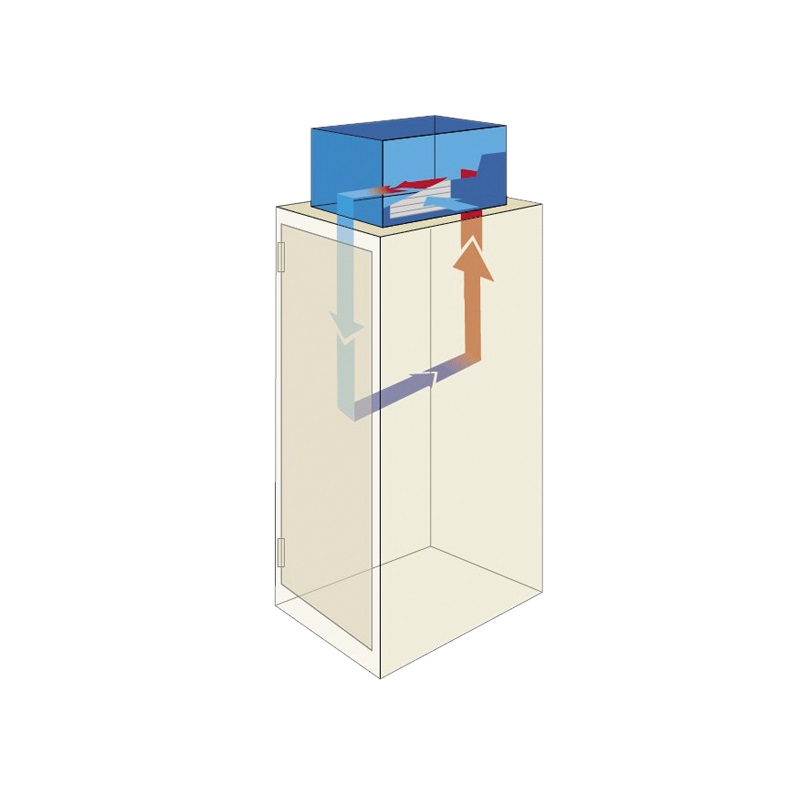

The A/C unit consists of two separate air circulation circuits:
1. The inside circuit, which cools the installed equipment and enters the A/C unit, where the hot air is transferred to a cooling medium.
2. The cooling circuit with a compressor, which is cooled by a stream of ambient air.

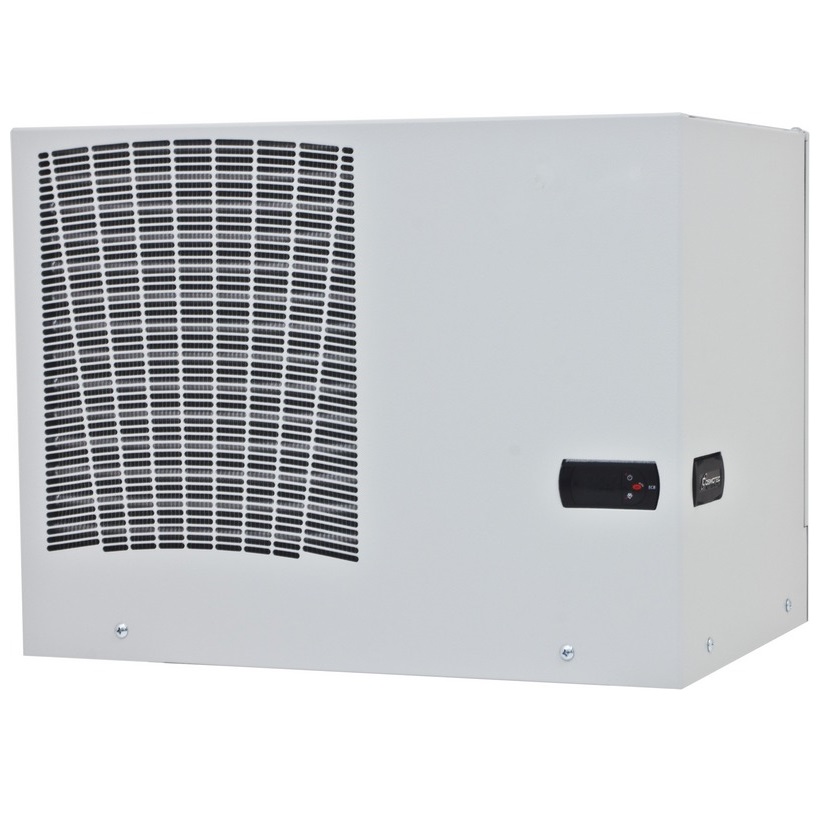

For active temperature management, we offer high quality STULZ- Cosmotec A/C units under the Tritón brand.
These compact A/C ETE units are designed for cooling the equipment in individual data cabinets (RDE and RIE cabinets with IP54 protection).
These A/C units are intended for both industrial and office environments thanks to their RPM management of the cooling fan in the compressor circuit.
The A/C unit adjusts the RPM speed of the fan, which is the main source of noise, depending on the current use of the cooling output inside the cabinet. It has a significant positive effect on the noise reduction of the unit when the maximum cooling capacity is not needed.
