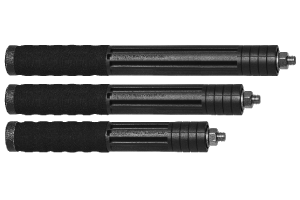

The Apolo MEA ResiTHERM is the perfect solution for distance installations in hollow bricks. It is a heavy-duty system for fastening of awnings, canopies, French balconies, railings, satellite dishes etc. in ETICS. Almost no thermal bridge due to a robust glass fibrereinforced nylon body. The 80 mm deep internal thread allows a perfect thermal separation as well as a big insertion depth of the threaded stud. Threaded stud, nut and washer out of stainless steel A4 for optimal corrosion resistance. Special membrane for an evenly distribution of the injection resin (tailored to ResiFIX VY) for high application safety. Massive anchor body made out of glass fibre-reinforced and ageing resistant high quality nylon ensures long-term security. Comfortable injection of the resin ResiFIX from outside. The mixing nozzle sticks in the injection hole, this makes it easier to adjust the protrusion to the plaster. Large application range due the metric thread M12 M12 is the most common thread size for awnings, canopies, French balconies, etc. Product is ready to use: Available in four standard lengths S, 120, 160, 200 for the most common insulation thicknesses.

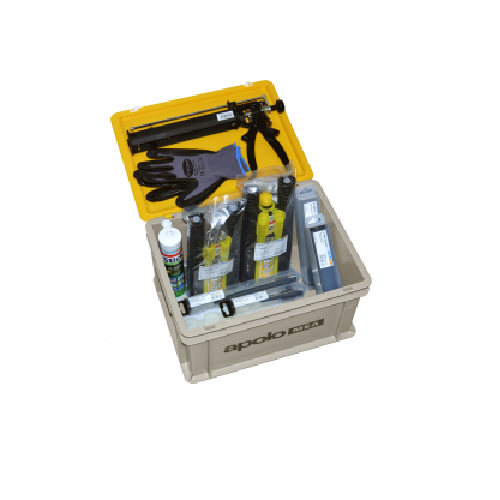

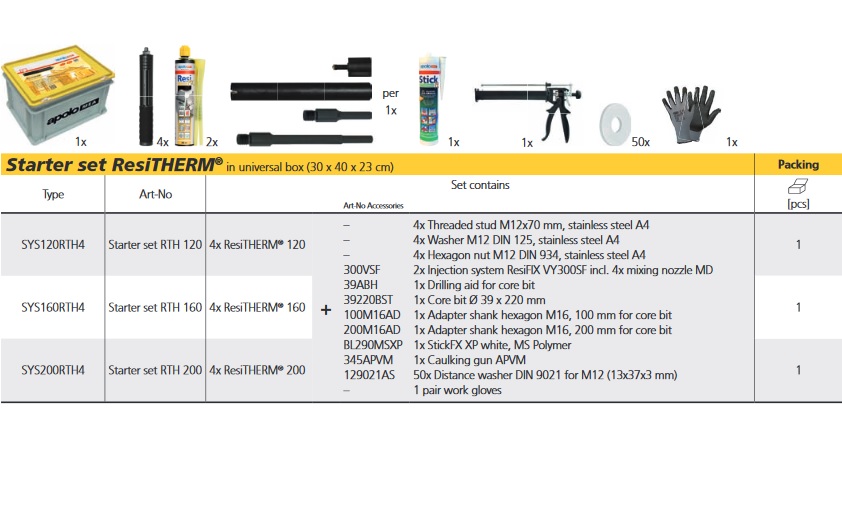

In set:
4x ResiTHERM® 120
4x threaded stud M12x70 mm in stainless steel A4
4x washer M12 DIN 125 in stainless steel A4
4x nut M12 DIN 934 in stainless steel A4
2x Injection system ResiFIX VY300SF incl. 4x mixing nozzle MD
1x drilling aid for core bit
1x core bit for perforated brick Ø 39 x 220 mm
1x adapter shank hexagon AD, M16, 100 mm for core bit
1x adapter shank hexagon AD, M16, 200 mm for core bit
1x StickFX XP white, MS Polymer
1x caulking gun APVM
50x distance washer DIN 9021 für M12 (13x37x3 mm)
1 pair work gloves
