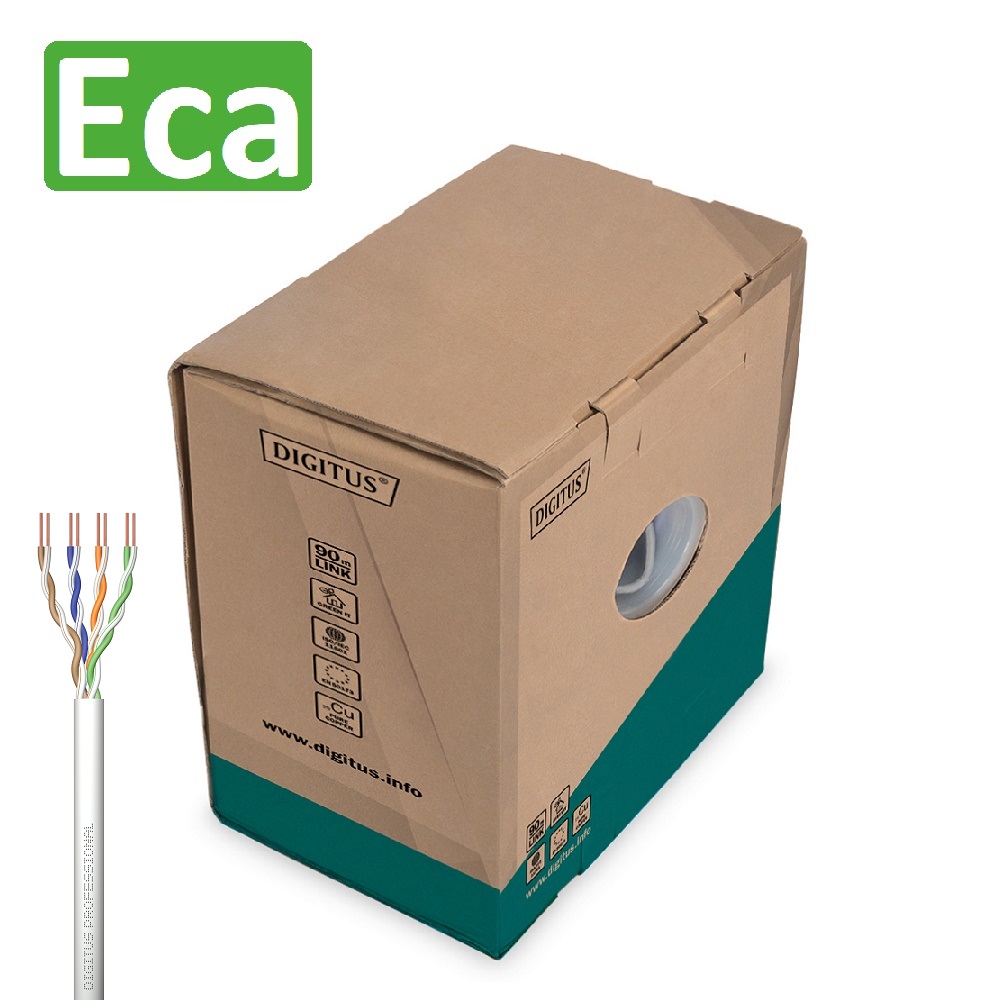

DIGITUS Cat.5e U/UTP installation cable, 305 m, simplex, Eca
Product number: DK-1511-V-305-1
EAN: 4016032363811
CAT 5e U-UTP installation cable, 100 MHz Eca (PVC), AWG 24/1, 305 m paper box, sx, grey
1GBit Ethernet
100 Mhz transmission frequency
PoE Power over Ethernet support
CPR class Eca
DESCRIPTION
The Digitus Cat 5e U7UTP installation cable is designed for use in the structured data center and the building cabling according to ISO/IEC 11801, DIN EN 50288-2-1, DIN EN 50173. The cable is perfectly suitable for the transmission of both analog and digital data and also supports POE. The shielding structure is composed of single shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values.
TECHNICAL DETAILS
Physical properties:
Conductor: Bare annealed copper, solid AWG 24/1
Insulation: PE (Polyethylene)
Total number of insulated conductors: 8, twisted in 4 pairs
Color code: Blue-white, orange-white, green-white, brown-white
Individual pair shield: None
Overall shielding: None
Outer sheath: Eca acc. to EN 50575; PVC
Outer sheath diameter (nominal): 0.50 mm nominal
Outer sheath color: Grey (RAL 7035)
Mechanical properties:
Tensile loading: 150N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Shipping- and storage temperature range: -20 °C up to +75 °C
Operating temperature range: -20 °C up to +60 °C
Installation temperature range: 0 °C up to +50 °C
Overall diameter Simplex (nominal): 4.7 mm nominal
Electrical properties:
Impedance: 100±5 Ohm @ 1-600 MHz
Capacitance: 40 pF/m nominal @ 800 Hz
Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz
Insulation resistance: 5 GOhm x km min.
DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance)
Voltage resistance: 72 Vdc max.
Coupling attenuation: CA-Type 3
Signal propagation delay: 535 nS/100 m max.
Propagation delay: 20 nS/100 m max.
Separating class: ,,b- acc. to EN 50174-2
NVP: 69%
Assortment: Twisted Pair Installation Cables
Category: CAT 5e
Shielding: U-UTP, unshielded
CPR: Eca
Length: 305 m
Color: grey
Jacket: PVC
Structure: 4 x 2 AWG 24/1, solid twisted pair
