Product description

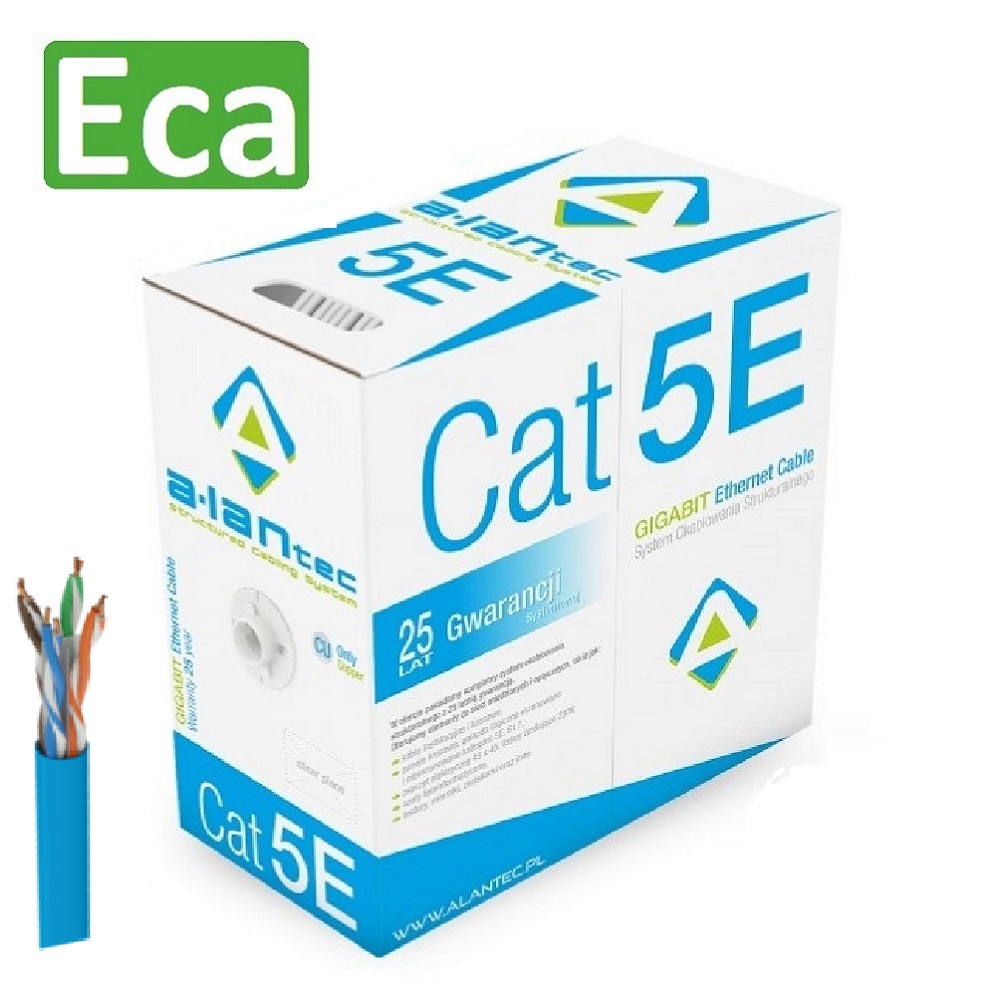

Certified, highest quality, dedicated for professional use, ALANTEC U/UTP category 5e data communication cable (class D, chractersity extended to 250Mhz).

All-copper conductors, unshielded cable center, designed for operation in an environment unaffected by electromagnetic interference.
The high quality of the product has been verified by testing at the INTERTEK laboratory in the USA and the Research Laboratory at the Communications Institute in Warsaw, and confirmed by a relevant document of compliance with industry standards: ISO/IEC 11801 (international standard, consistent with the Polish and European PN-EN 50173 standard modeled on it) and ANSI/TIA - 568 (standard used in the US market).

ICT cables of this type are designed for indoor horizontal and vertical installations in ICT and CCTV networks. All ALANTEC cables comply with the CPR directive on the classification of construction products for fire resistance and defining test methods for cables intended for installation in buildings.

The product comes with a 25-year system warranty.

Euroclass » Eca
Euroclass » Eca
Flammable insulated cable meeting the criteria of Euroclass Eca in accordance with EN 50575:2014 + A1:2016 and Regulation (EU) No. 305/2011 of the European Parliament and of the Council of March 9, 2011. (Construction Products Regulation or CPR)

The cables are tested in accordance with EN 60332-1-2.

Eca-class cables find their application in single-family dwellings, outbuildings, garages and structures without specific safety requirements.



Technical Specifications

CONSTRUCTION AND ELECTRICAL PARAMETERS
Category 5e
Class D (100MHz standard) with extended characteristics up to 250 MHz / 1 Gbps
AWG cross section 4x2x24AWG
Conductors single stranded copper with a diameter of 0.51mm (24AWG)
Insulation polyethylene
Fire classification CPR (Euroclass) Eca
Center 4 twisted pairs
Shield none
Coating polyvinyl with improved oxygen index (FRPVC)
PoE 802.3 af
Color blue
ELECTRICAL PROPERTIES AT 20ºC
DC resistance loop ≤ 95 Ω /km
Alternating resistance ≤ 2%
Insulation resistance (500V) ≥ 5000 MΩ *km
Capacitive reactive resistance at 800 Hz nom. 48 nF/km
Variable reactive capacitive resistance ≤ 1500 pF/km
Characteristic apparent resistance (1-1000MHz) (100 ± 15) Ω
Nominal velocity of propagation (NVP) 69%.
Delayed propagation Nominally ≤ 535 ns/100m
Delay angle Nominally ≤ 20 ns/100m
DC installation tester, 1 min (core) 1000 V
MECHANICAL PROPERTIES
Bending radius 4 x outer ø
Max. pulling force 80 N
Temperature range during use -30°C to + 50°C
Temperature range during installation 0°C to + 50°C
Outer diameter 4.8 mm
Weight kg/km 30
Packing spool (305m)
