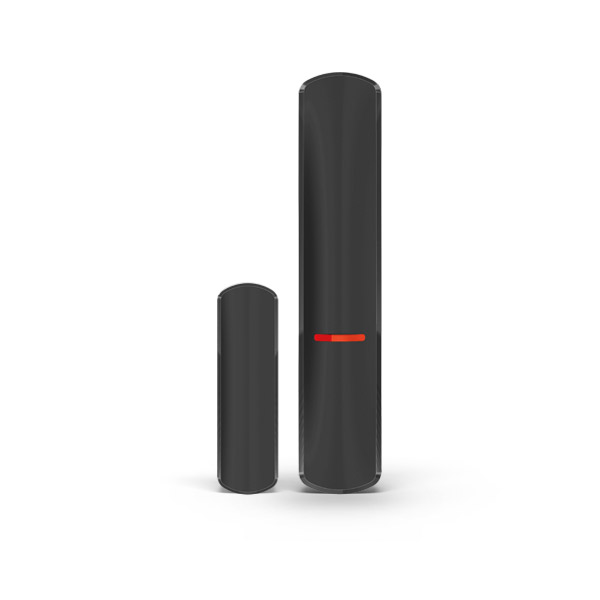

AXD-200 is a multifunction device operating as part of the ABAX 2/ABAX two-way wireless system. It meets the EN 50131 Grade 2 requirements.

The device can work in one of 7 modes as a magnetic contact, two-channel magnetic, magnetic with roller shutter input, shock and magnetic, reorientation, temperature or flood detector. To change the mode, you must knock on the detector enclosure appropriately. This procedure is performed before enrolling the device into the controller.


Magnetic contact / two-channel magnetic / magnetic with roller shutter input

detection of opening of a door, window, etc.
input for control of an NC type wire detector
additional digital channel for control of a wired detector (two-channel magnetic, magnetic with roller shutter input)
input for control of a wired roller shutter detector (detector with roller shutter input)
Shock and magnetic contact detector

detection of shocks and vibrations associated with attempts to force a door or window
detection of opening of a door, window, etc.
adjustment of detection sensitivity/li-
Reorientation detector

detecting a change in position of an object
individual protection of valuable items
Temperature detector

temperature measurement in the range from -10°C to + 55°C
two programmable temperature thresholds (upper and lower)
Water flood detector

detection of water leakage
input for connecting an external flood probe FPX-1 (white), FPX-1 BR (brown) or FPX-1 DG (dark gray) - the probe available separately
