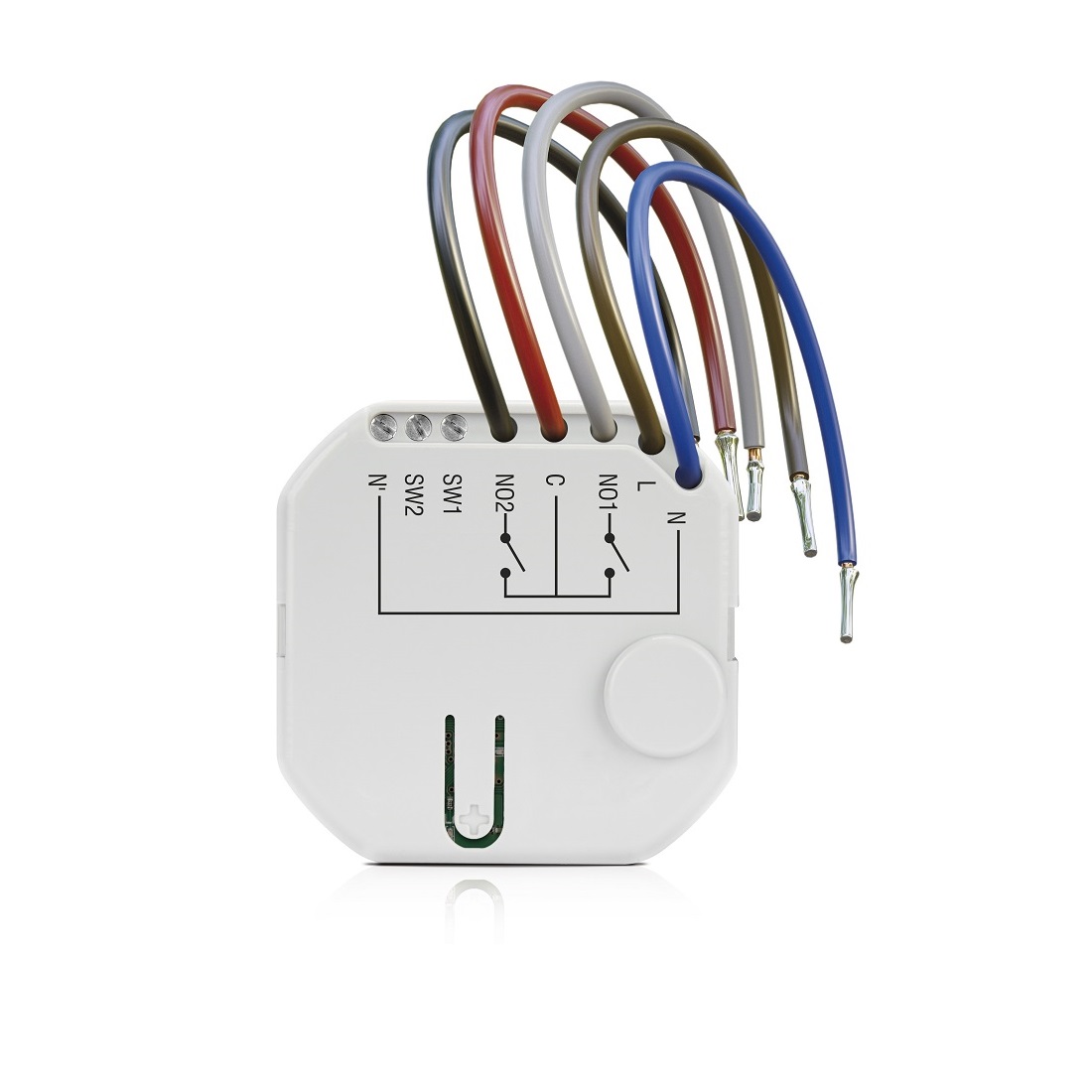

The ASW-210 module is designed to remotely switch on/off devices powered from 230 V AC mains. It operates as part of the ABAX 2/ABAX two-way wireless system.
The controller has compact dimensions and is designed for in-wall mounting.
The device is provided with two control inputs designed to connect e.g. wall switches (mono- and bistable).
Configuration and updating of firmware is carried out remotely. Radio communication in the ABAX 2 system is AES encrypted.
remotely switching on/off 230 V AC devices
2 control inputs
compatible with:
ABAX 2 system controllers (ACU-220 and ACU-280) and ARU-200 radio signal repeater
soon - ABAX system controllers (ACU-120 and ACU-270 - version 5.05 or newer), INTEGRA 128-WRL system control panel (firmware version of the processor supporting the ABAX - 3.11 or newer) and ARU-100 radio signal repeater (version 2.02 or newer)
range of radio communication in the open area:
in ABAX 2: up to 1000 m (with ACU-220 or ACU-280)
in ABAX: up to 500 m
remote configuration and firmware update
compact dimensions
in-wall mounting
