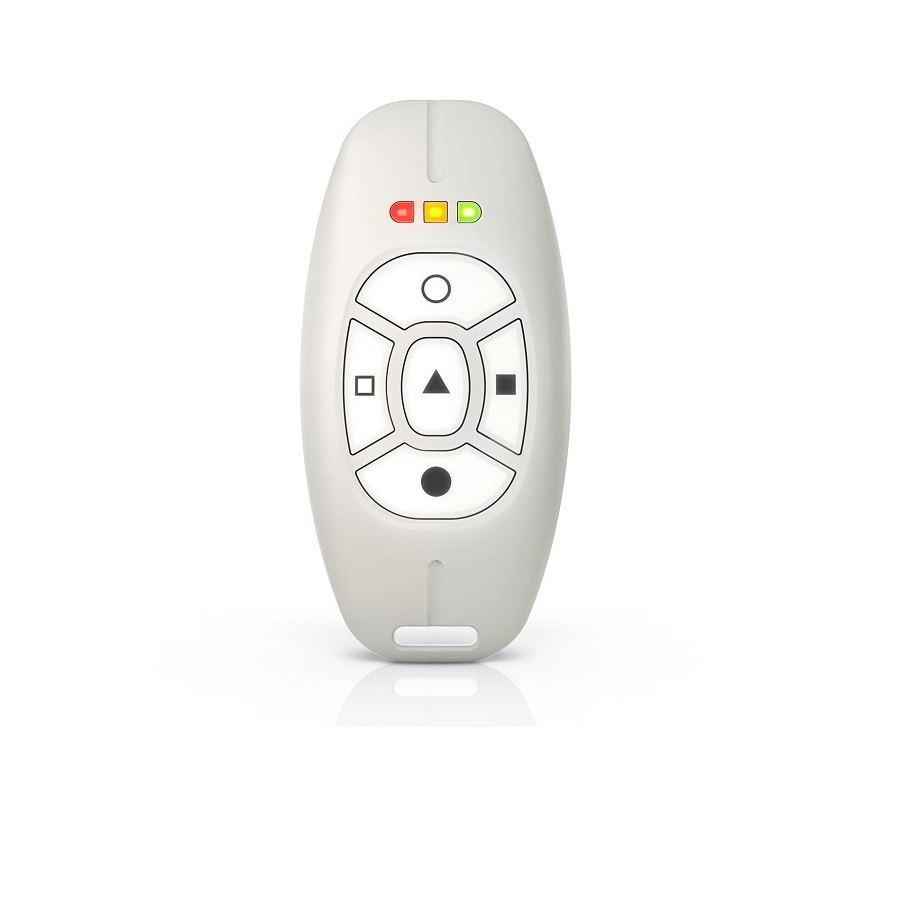

The APT-200 keyfob enables remote control of the alarm system or building automation devices. It is designed to work as part of the ABAX 2/ABAX two-way wireless system.
The device is provided with 5 backlit buttons that make it possible to use up to 6 functions.
Acknowledgement of the command received by the controller is indicated audibly and visually. The remote control has a piezoelectric transducer for sound signaling and 3 LEDs to which individual functions can be assigned to inform you about the state of the system.
The APT-200 firmware can be updated remotely. In the ABAX 2 system, communication is AES encrypted.
The keyfob is powered by a CR2032 3 V battery and has low battery indication.
configuration of button functions (up to 6 functions)
optical and acoustic acknowledgement of commands received by the controller
backlit buttons
compatible with:
ABAX 2 system controllers (ACU-220 and ACU-280) and ARU-200 radio signal repeater
ABAX system controllers (ACU-120, ACU-270 and older ACU-100, ACU-250), INTEGRA 128-WRL control panel and ARU-100 radio signal repeater
range of radio communication in the open area:
in ABAX 2: up to 1200 m (with ACU-220) / up to 600 m (with ACU-280)
in ABAX: up to 150 m
remote firmware update
power supply: CR2032 3 V battery
optional replacement of the standard button pad with GKX-1 (having colored pictograms)
