SyCALL is a resettable manual call point with unique
and innovative features. It has been designed to obtain
maximum visibility, high reliability in operation and
pleasant aesthetical appearance and is fully approved
to EN54-11.

Six modes of operation are achievable simply by
choosing the appropriate internal connection terminals.
All these configurations are easily accessed via the

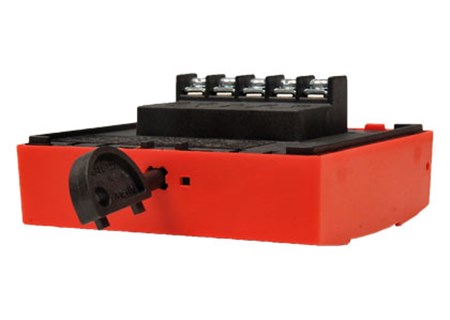

screw terminals. The internal printed circuit board is
fully enclosed and protected and incorporates a current
limiter that maintains a steady supply to the LED.

The SyCALL is easily reset using the special key provided
that allows a simple twist action to restore the call
point to its normal operating condition. The same key is
used to access the electrical connection.

The SyCALL is supplied in a choice of either flush or
surface mount options. Once fitted the front operating
element simply snaps into place and is released using
the dedicated test and removal tool supplied with each
unit.

There is the provision of two cable entry knockouts on
the rear plus 2 x 3 pre-marked location points on both
top and bottom sides of the surface mount back box.
